High technology

At low cost

Cartesiano 3 Eixos G3 Automation

Cartesian Robots – 3 axes

Page/Post Excerpt

Developed to provide the best cost-benefit ratio, the G3 – S3 Cartesian robot combines high technology and low cost. With an 100% national manufacturing, intuitive programming and low maintenance cost,  the G3 – S3 robot series is the right choice for to reduce production costs.

The G3 – S3 robots are ideal for handling services of injection molding machines, assisting the extraction and stacking of items, in mold labeling, inserts application, among other functions. Its three-dimensional handling allows for highly precise manipulation of injection molded items of complex design, commonly used in electronics, household appliances, automobiles, and more.

Areas of application

Telescopic axis

With a telescopic vertical axis, the Cartesian robot line reaches significant speeds for items extraction and other operations.

Rotating arm

The end of the vertical arm has a 90º rotation, in order to facilitate handling items out of the injection molding machine area, as well as their stacking.

Intuitive controller

Practicality, intuitive programming, and easy operation. The controller, with language entirely in Brazilian Portuguese, was developed to facilitate the operation of the G3 Automation Cartesian robot.

Ícone IHM Robô Cartesiano

Customized grips

Masks made of aluminum and/or carbon fiber, providing high resistance and lightness when handling products.

Videos

Robô Cartesiano G3 Automation - lado02

Differentials

Specifications

G3-800-S3

G3-1000-S3

G3-1200-S3

G3-ESP-S3

Injectors tonnage (ton)

≤ 250

250-450

450-650

≤1000

Transv. stroke – Z axis (mm)

1500

1650

1800

1200-6000

Longit. stroke – X axis (mm)

800

1000

1200

    800-3600

Vert. stroke – Y axis (mm)

800

1000

1200

    800-2800

Max. speed Z axis (m/s)

2,0

2,0

2,0

2,0

Max. speed X axis (m/s)

2,0

2,0

2,0

   2,0

Max. speed Y axis (m/s)

5,2

5,2

5,2

 5,2

Max. load – parts + gripper (kg)

5,0

8,0

10,0

≤40,0

Air consumption (L/min)

30

30

30

30

Operating pressure (bar)

6

6

6

6

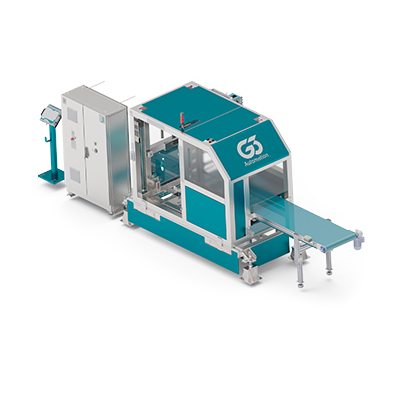

Slim Side Robot
Slim Side Robot
In Mold Label Side Robot
In Mold Label Side Robot

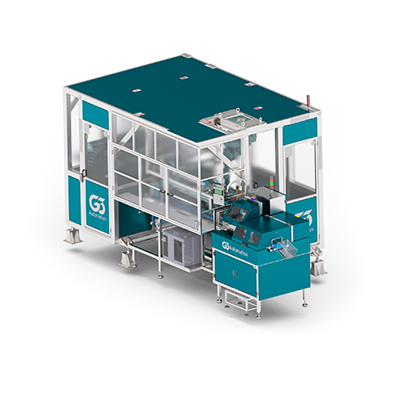

Cutlery Side Robot
Cutlery Side Robot

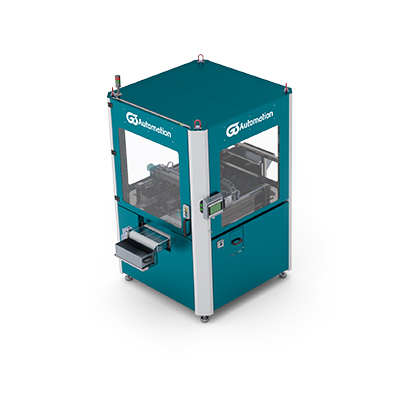

Special Projects
